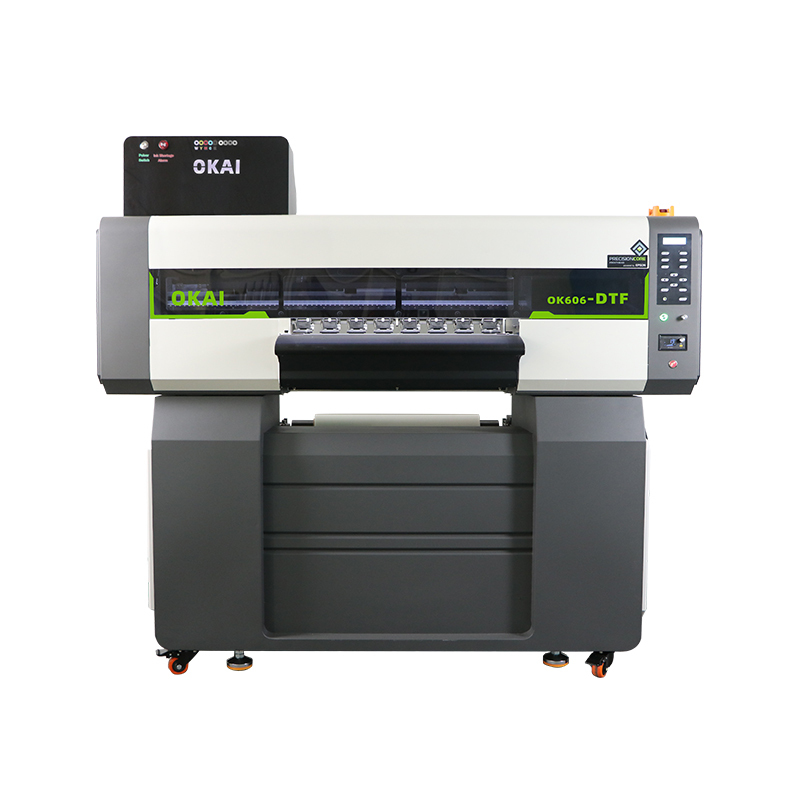

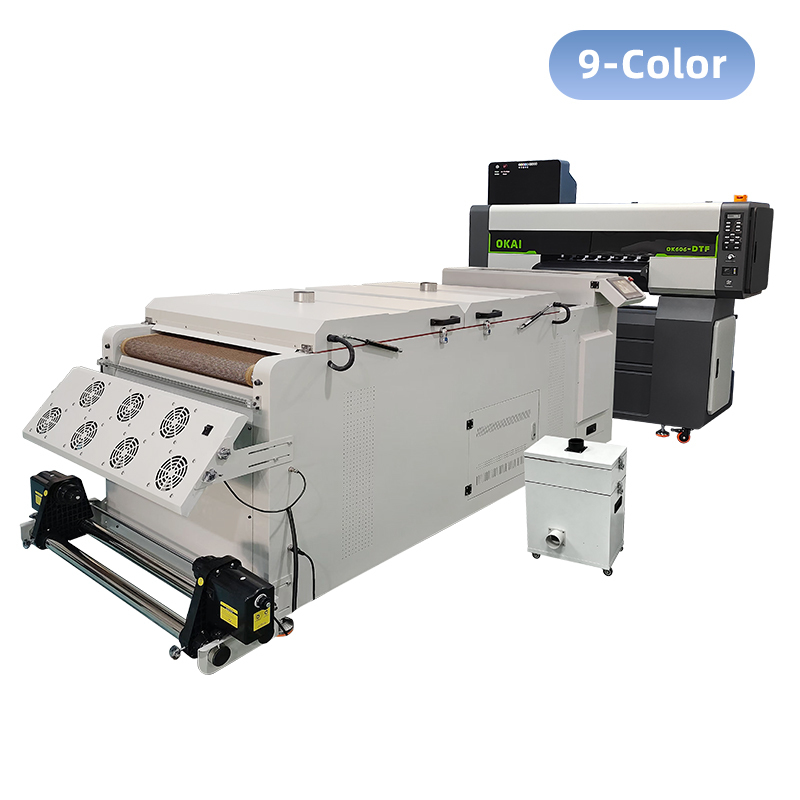

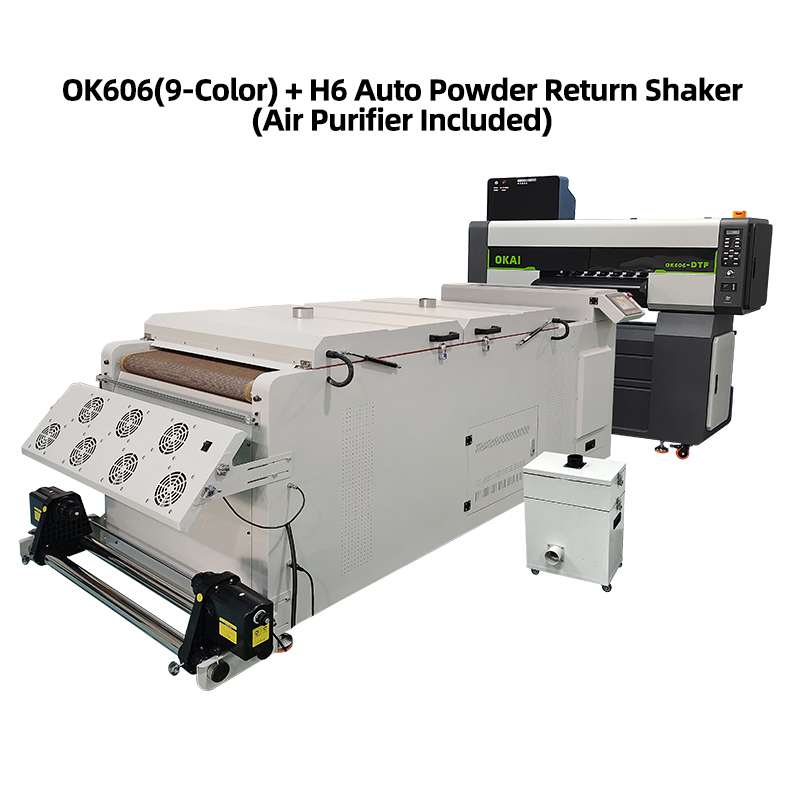

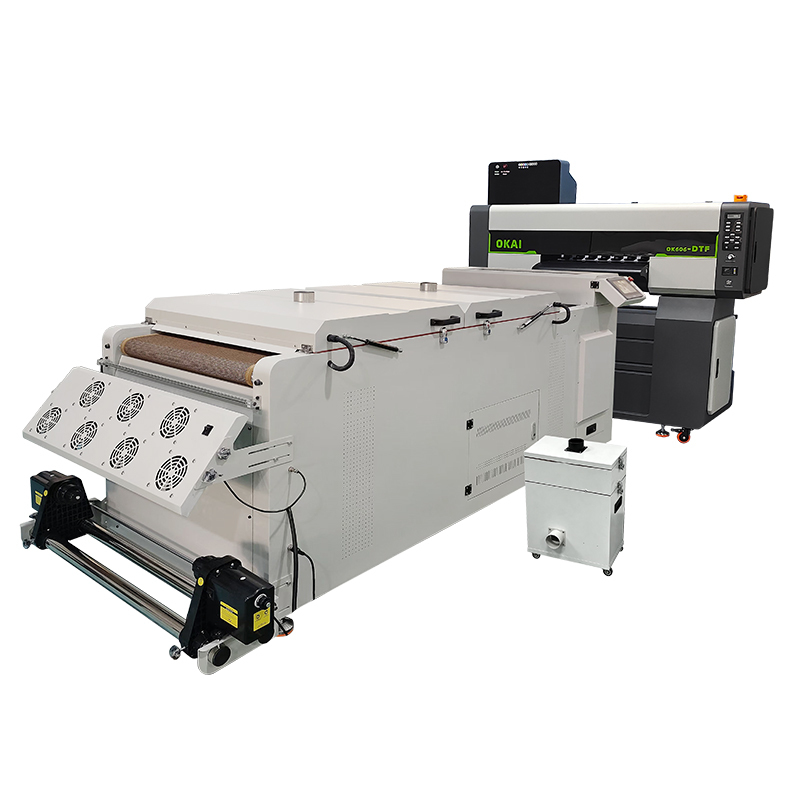

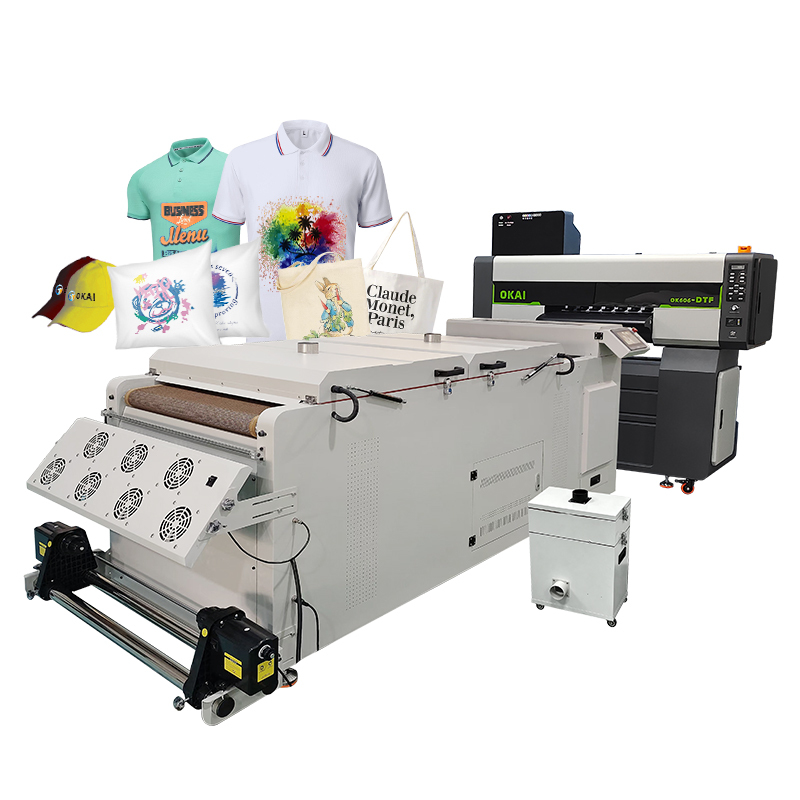

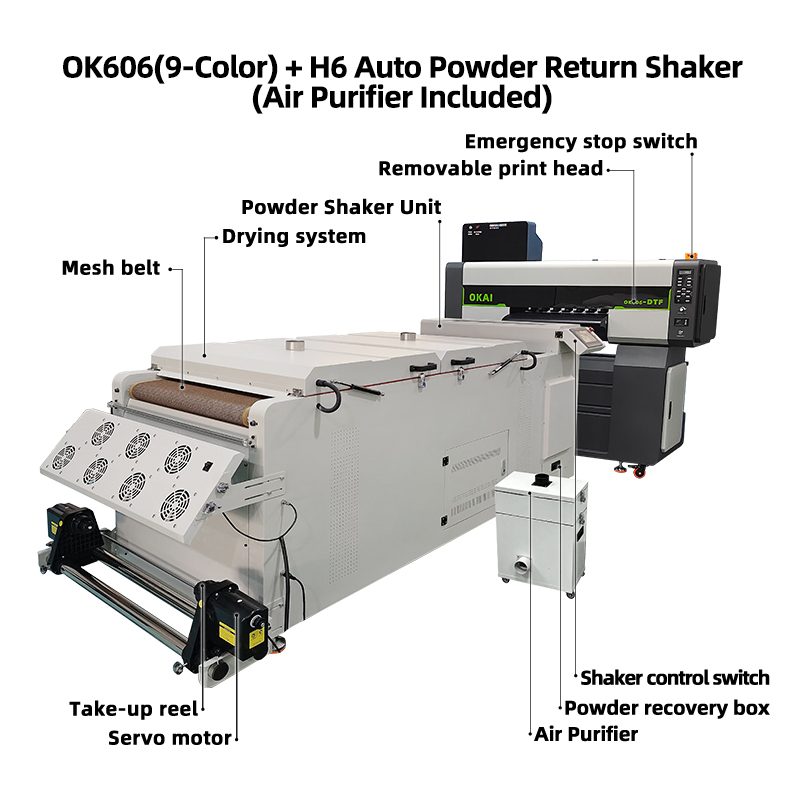

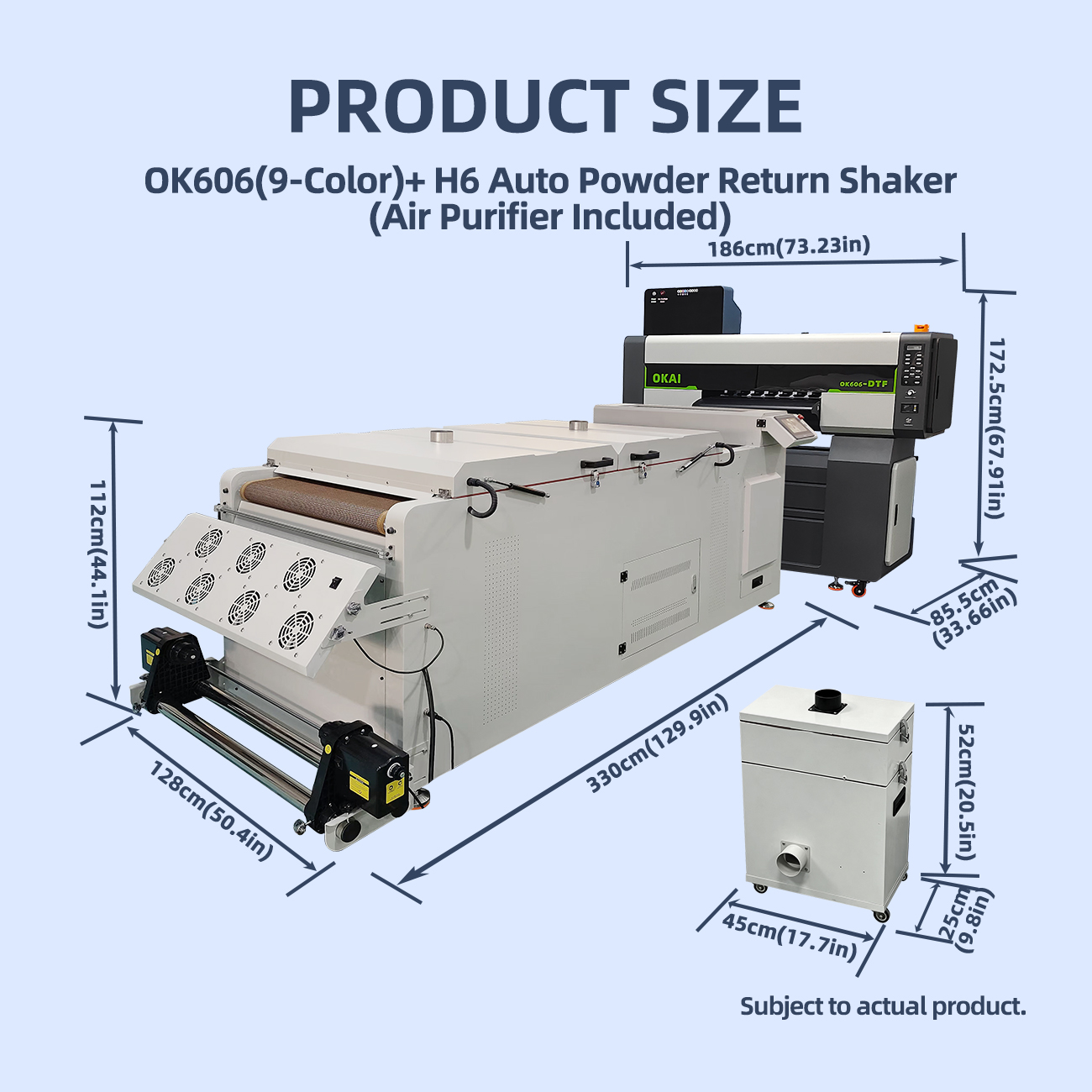

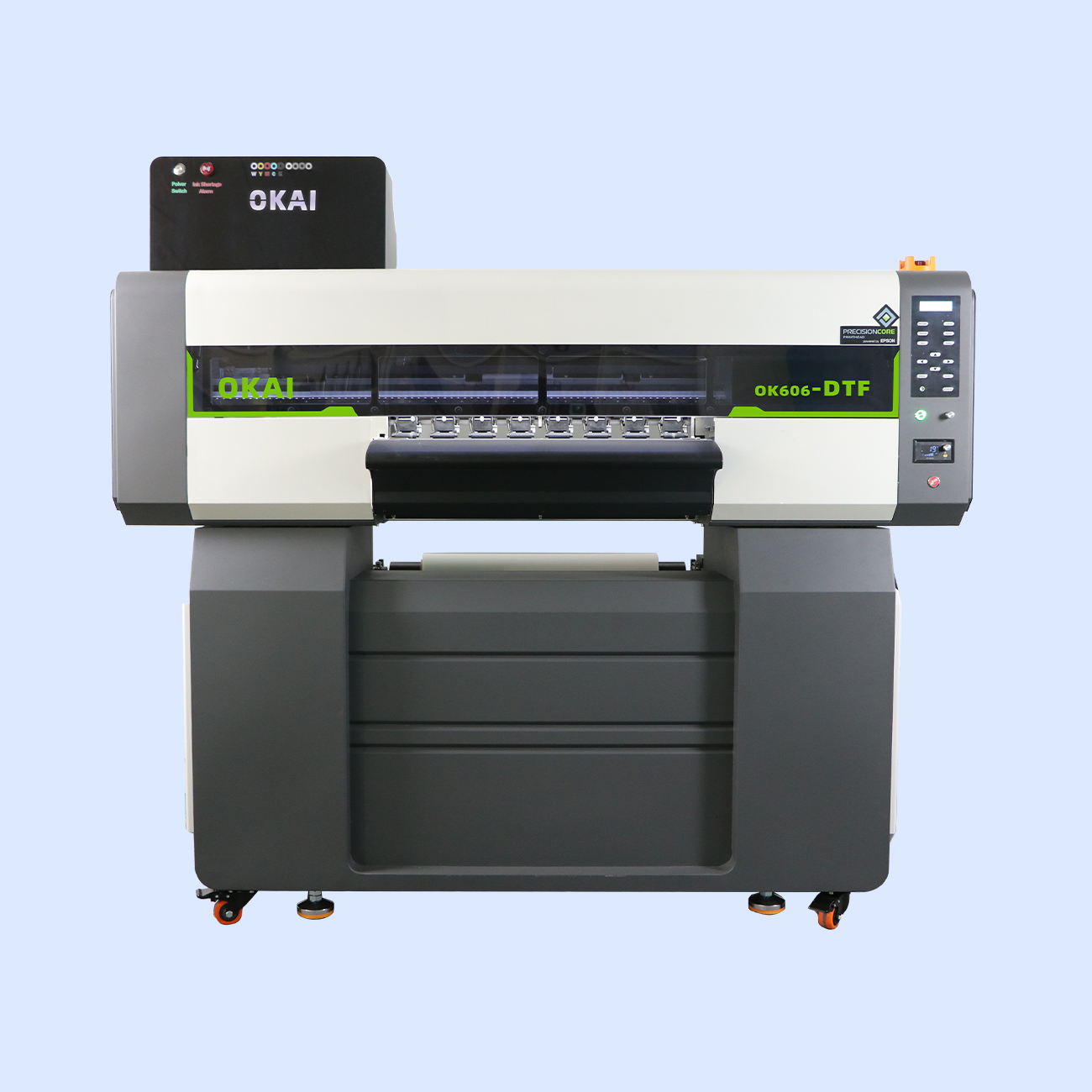

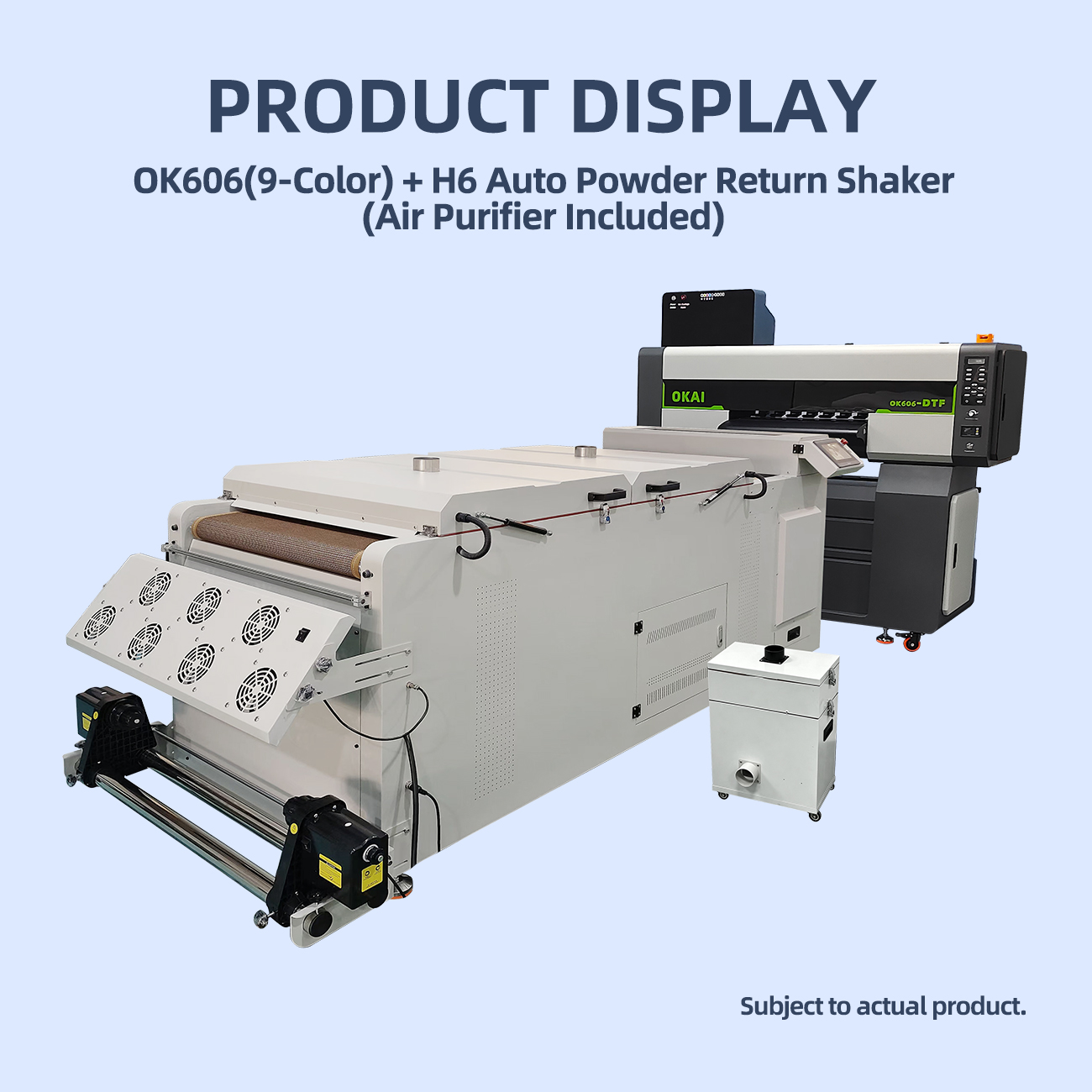

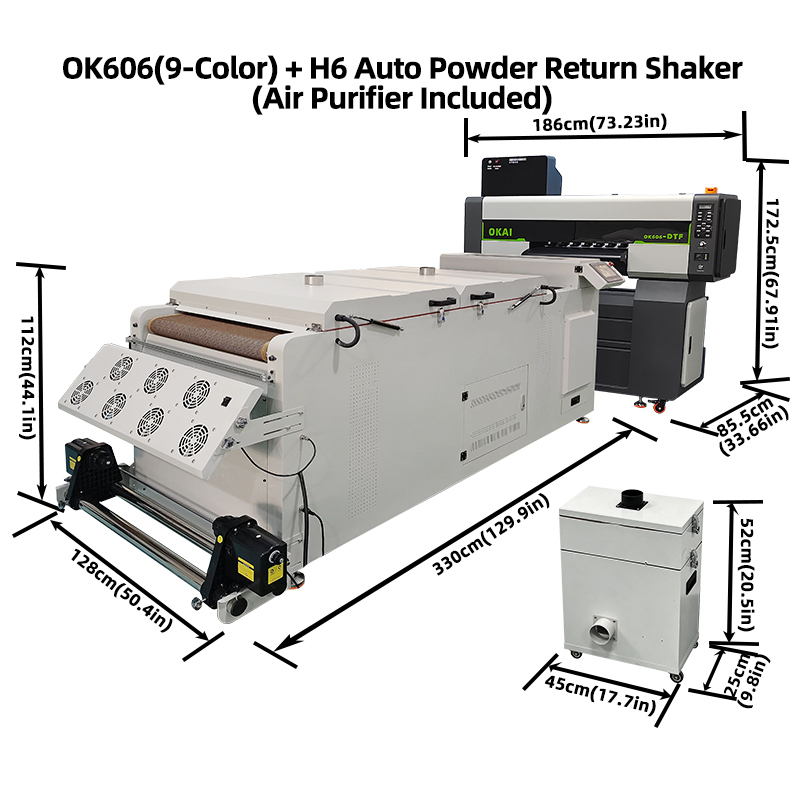

The OKAI-606 Pro Max 9-Color is a 24-inch DTF printer for custom apparel businesses, print shops, and transfer production. Featuring six Epson i3200 printheads, this model pairs a 9-color printing configuration with an H6 shaker equipped with a conveyor belt, powder recycling, and air purification.
Choose the dedicated 9-color version for your DTF production workflow. This model is offered as one package with the powder-recycling shaker and air purification included, making the supplied configuration clear from the start.
Automatic pinch rollers and media feeding help move film through the printer. Printhead moisturizing supports printhead care between jobs, while the ink-level alarm alerts operators when ink needs attention. Routine checks and maintenance remain part of daily operation.

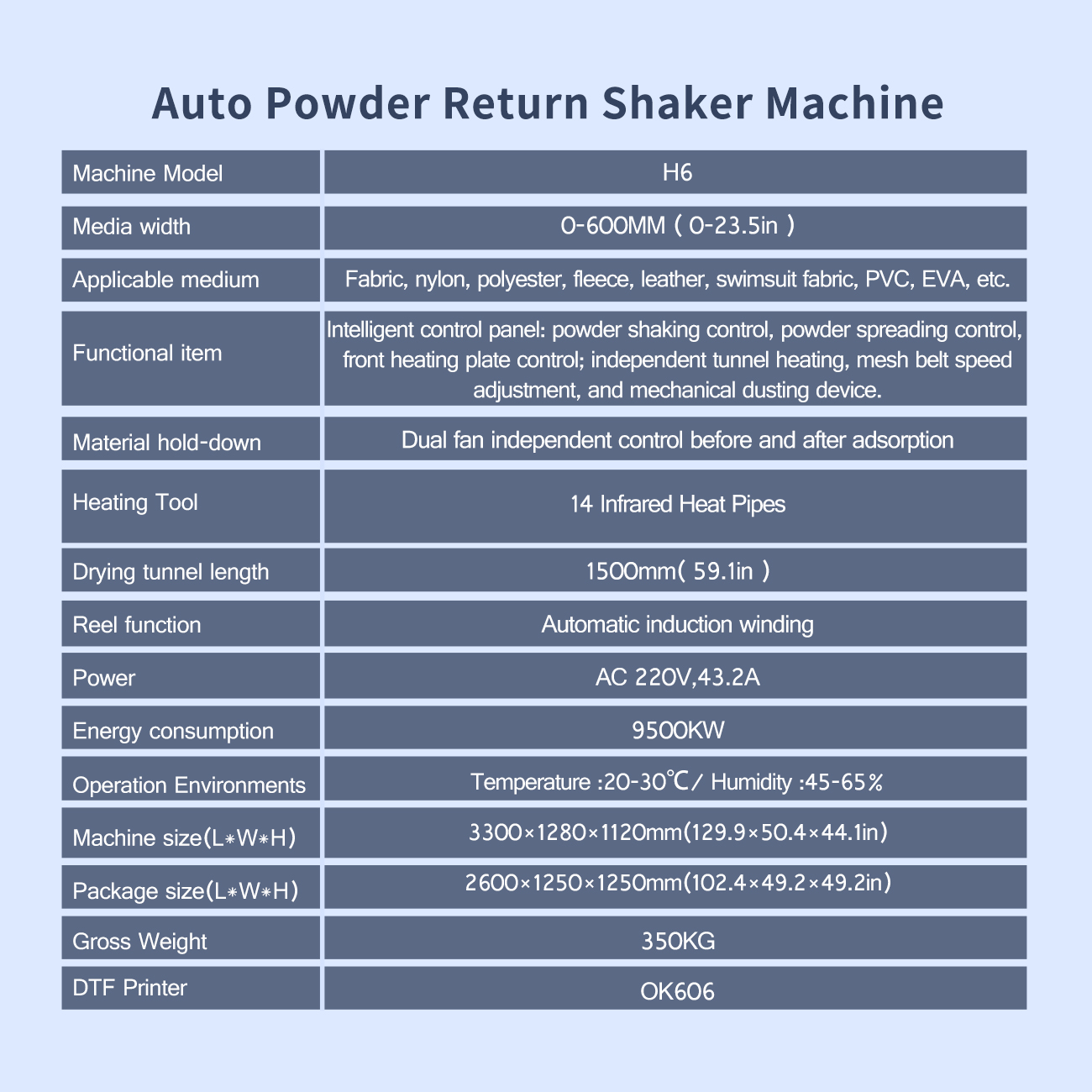

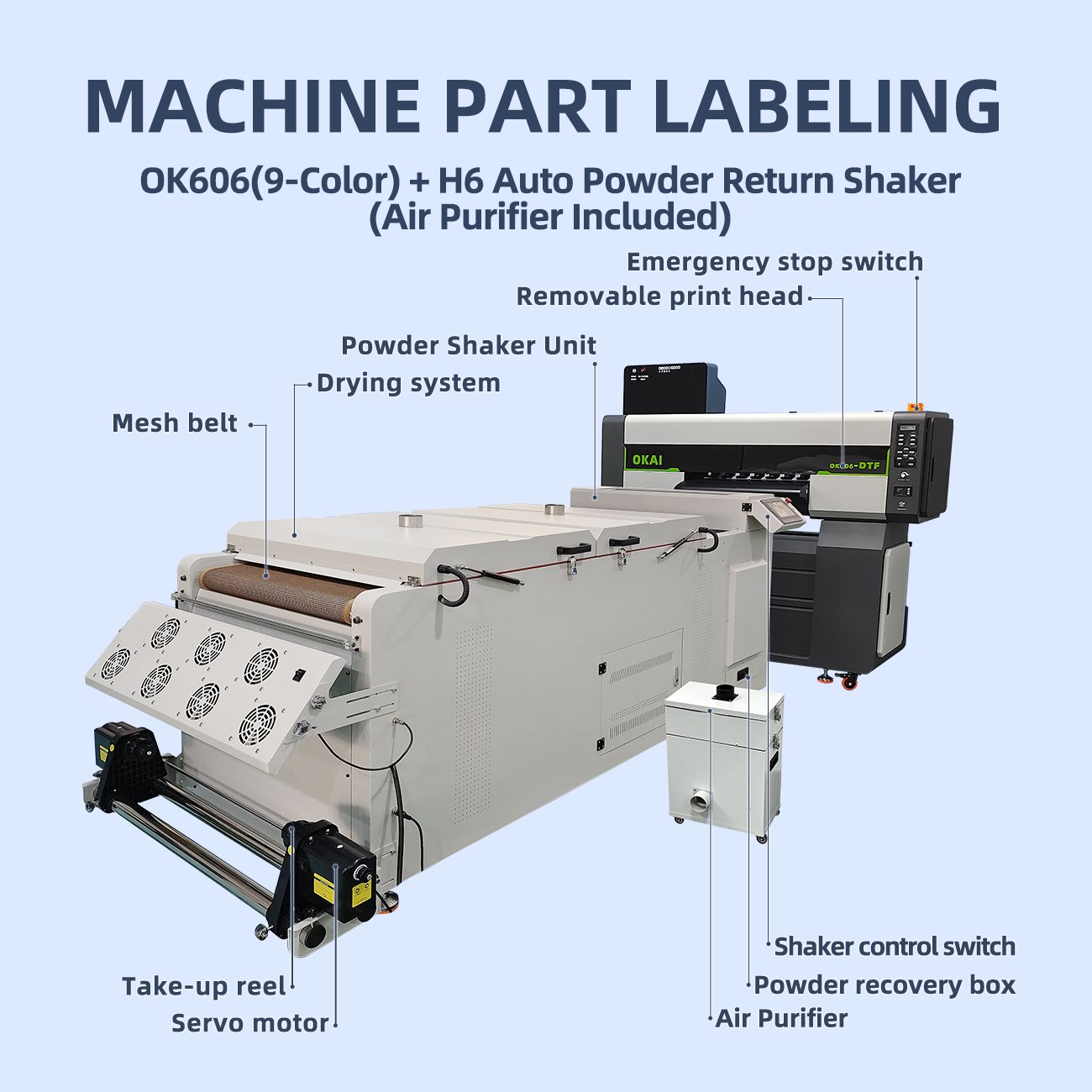

The included H6 shaker combines three functions in one setup:
Contact the OKAI team to confirm the ink color set, software bundle, electrical requirements, and installation arrangements before ordering.
FAQ
What is the recommended daily maintenance for the OKAI 606?
Daily maintenance involves performing a nozzle check to ensure all six heads are firing correctly, cleaning the wiper blade, and ensuring the capping station is free of dried ink. The machine's automated moisturizing system significantly reduces manual effort, but visual inspection is recommended before starting a high-volume shift.
Does this printer come with a RIP software license?
Yes, the OKAI 606 is typically compatible with industry-standard RIP software such as Maintop or Photoprint. Specific software bundles may vary based on the purchase package, so please confirm the software inclusion when inquiring about the machine configuration.
How does the auto pinch-roller system improve printing?
The auto pinch-roller system ensures consistent, electronically controlled pressure across the media width, preventing film skewing and slipping. This is critical for the OKAI 606 because, at high printing speeds, manual rollers often cannot maintain the necessary grip stability for long, unattended production runs.
Can I operate the OKAI 606 without a specialized ventilation system?

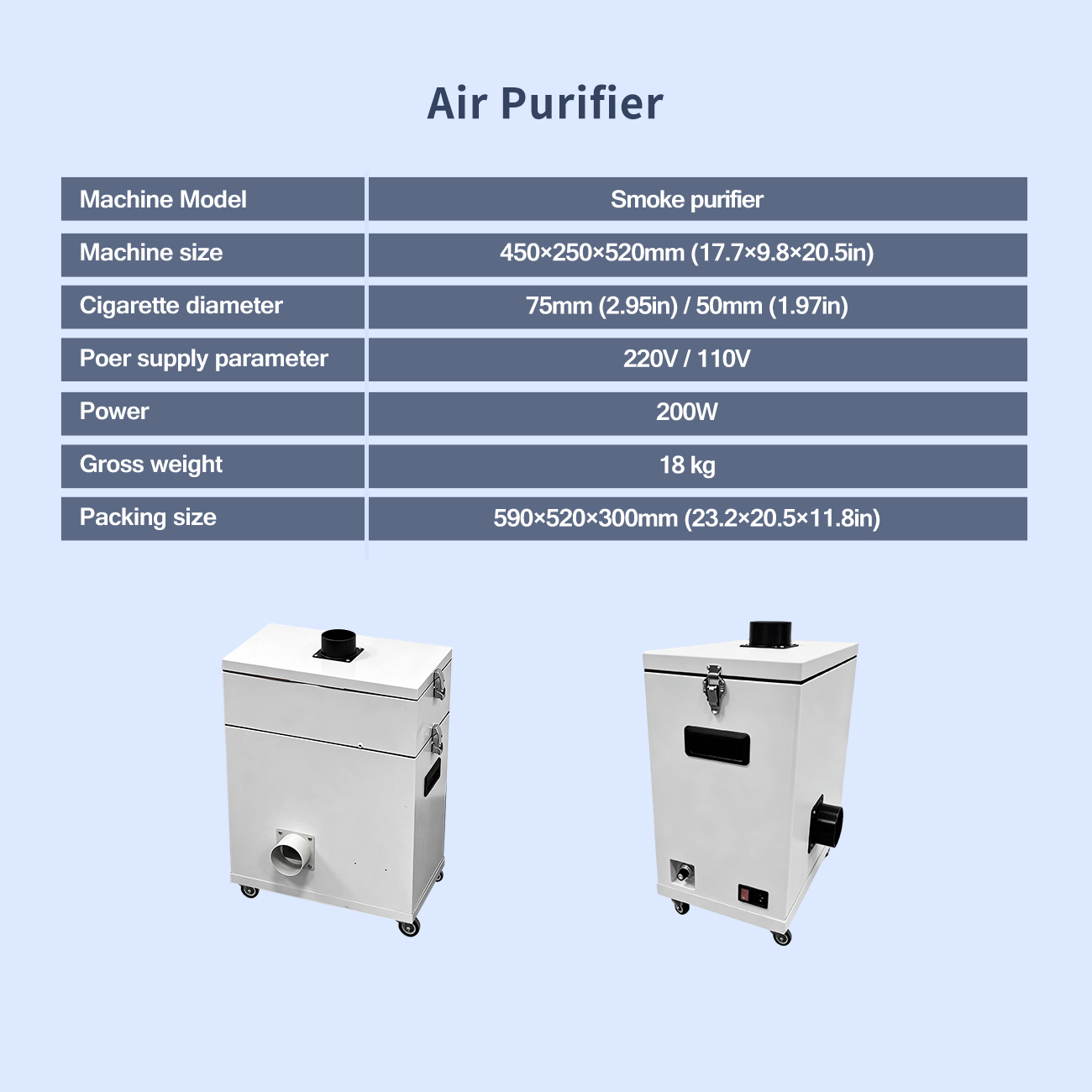

No, due to the industrial volume of ink and powder curing involved, we strongly recommend using a dedicated smoke purifier or external ventilation system. While the printer itself is enclosed, the accompanying curing process generates fumes that must be properly exhausted for a safe working environment.
What power requirements are needed for the full 606 setup?
The printer and the necessary powder shaker/oven require a stable power supply, typically 220V for industrial efficiency. Given the high heating elements in the dryer and the multiple servo motors in the printer, a dedicated circuit with appropriate amperage is required to prevent voltage fluctuations during operation.This model only supports a 220V power supply system, with a rated current of 65A and power of 11.4kW.
